8 Layers Wear-resistant Rubber Ship Lifting and Launching Marine Airbags
Key Features of Launching and Docking Ship Airbags :
1. Flexible in various launching projects: Ship launching airbags can be made to be specified sizes and layers as per the requirement of different launching projects.
2. Easy Operation: The operation of launching vessels with ship launching rubber airbags is releatively easy, just laying out and inflating the airbags to lift the vessels and roll them to the water.
It has not strict requirement on slipway conditions. Ship launching can be executed even in tough conditions.
3. Durable and recycled: Ship launching airbags can be used many times repeated.
4. High economy: As ship launching airbags can be used repeatedly and its cost is not high, launching or docking ships with marine airbags can save much cost for shipyards or ship owners.
The Size and Specifications of Ship Launching Airbags
Ship launching airbags can be made into various sizes and layers accoding to the ship size and weight and the launching or docking conditions.
| Size | Diameter | 1.0m, 1.2m, 1.5m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
| Effective Length | 10m, 12m, 15m, 18m, 20m, 22m, 24m, etc |
| Layers | | 4 layers, 5 layers, 6 layers, 8 layers, 10 layers, 12 layers |
Below is a chart for the bearing capacity of several sizes
| Model | Dia | Effective Length | Overall Length | Cord Layer | Rubber Plate | Thick-ness | Working Pressure | Bursting Pressure | Lifting Height | Bearing Capacity |
| | M | M | M | Layer | Layer | mm | MPa | MPa | M | Ton/meter | Ton/airbag |
| LH-6 | 1.2 | 12 | 14 | 6 | 1 | 7.2 | 0.17 | 0.75 | 0.90 | 7.85 | 94.20 |
| 1.00 | 5.23 | 62.76 |
| 1.10 | 2.62 | 31.44 |
| LH-7 | 1.5 | 15 | 17 | 7 | 1 | 8.2 | 0.16 | 0.70 | 1.00 | 12.21 | 183.15 |
| 1.10 | 9.77 | 146.55 |
| 1.20 | 7.33 | 109.95 |
| 1.30 | 4.89 | 73.35 |
| LH-8 | 1.8 | 18 | 20.5 | 8 | 1 | 9.2 | 0.15 | 0.67 | 1.20 | 13.96 | 251.28 |
| 1.30 | 11.63 | 15.12 |
| 1.40 | 9.31 | 167.58 |
| 1.50 | 6.98 | 125.64 |
| 1.60 | 4.65 | 83.70 |
| LH-10 | 2.0 | 20 | 23 | 10 | 1 | 11.2 | 0.17 | 0.75 | 1.30 | 18.32 | 366.40 |
| 1.40 | 15.70 | 21.98 |
| 1.50 | 13.09 | 261.80 |
| 1.60 | 10.47 | 209.40 |
| 1.70 | 7.85 | 157.00 |

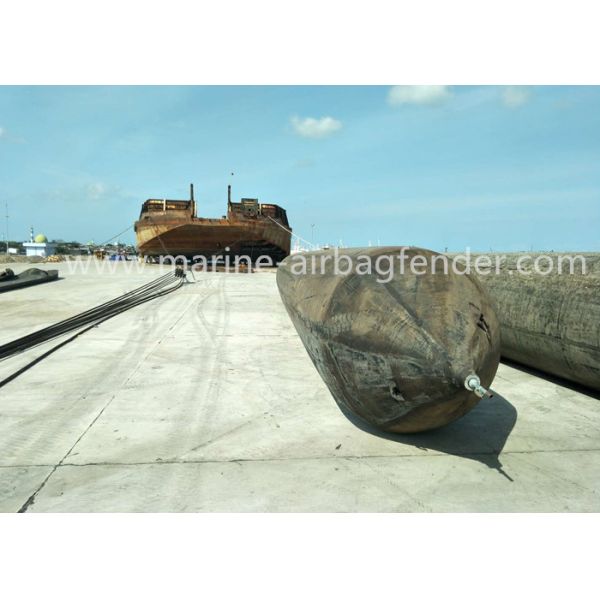

Pictures of Our Ship Luanching Airbags on Site
Material and Construction of Luhang Ship Launching Airbags
Why Choose us and Our Ship Launching Airbags?
1. We are the leading and professional manufacturer of marine airbags with more than 20 years of developing and production experience
2. Credible company to make marine airbags with optimzied rubber material, enough sizes and enough layers
3. ISO certificated with a number of patents on products
4. Airbags have been inspected and approved by Third-Party like BV, SGS, V-Trust etc with excellent performance of high pressure and airtightness
This inspection report shows all airbags almost had no air leakage after 8 hours from initial pressure 0.15mPa-0.16mPa to 0.14-0.15mPa.
5. Satisfying and timely after-sale service: In case of any quality claims during the warranty period, we will carry out the Three Guarantees for repair, replacement and compensation of faulty airbags.
